Torsion Springs

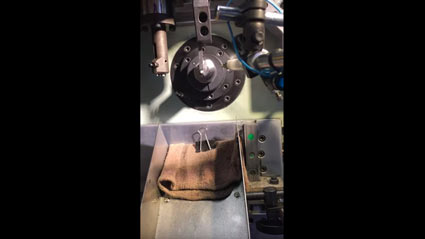

Custom torsion springs from Springfield Spring & Stamping are manufactured on state-of-the-art CNC wire forming equipment including the CNC Itaya Wire Former and the CNC Orimec MLS-10V. This equipment allows us to offer custom torsion springs with a wide variety of end types.

Specifications

Capabilities

In addition to single and double torsion spring options, these springs can also be ordered with hinge ends, short hook ends, short offset, straight torsion, and special ends.

At Springfield Spring & Stamping, small torsion springs are no problem—wire diameters can range from .008″ to .135″ (.201 to 3.4 mm).

We work with a large range of materials, including music wire, brass and stainless steel. Quality finishes range from manganese phosphate to passivation to powder coated.

Why Choose Us for Your Custom Torsion Spring Needs?

Springfield Spring & Stamping is committed to helping you get the custom torsion springs you need. Through our cost reduction program, our engineers can identify alternative materials, tolerances, and manufacturing methods to make your custom torsion spring production more economical.

Get Started

International shipping is available! For additional information about our custom torsion springs or other products we offer, contact us today!



Torsion Spring FAQs

What material types are available for torsion springs?

Torsion springs can be made from any of the following materials:

  • Music Wire
  • Pre Tin-Coated Music Wire
  • Pre-Galvanized-Coated Wire
  • Hard Drawn MB
  • Oil Tempered
  • Stainless Steel
  • Phosphor Bronze
  • Beryllium Copper
  • Brass
What are possible configurations for torsion springs?

Our configurations include Double Torsion, Hinge Ends, Short Hook, Short Offset, Straight Torsion, and Special. We have the capabilities to customize torsion springs based on your needs. Contact our team today to learn more.

What are wire diameter capabilities for torsion springs?

Our wire diameter capabilities range from 0.008″ to 0.135″

Wire Diameter Min.

.008 in
.201 mm

Wire Diameter Max.

.135 in
3.4 mm

What file types are acceptable for submitting a drawing?

We utilize CADKEY Creator and can translate most of the common CAD files for use. Here is a complete list of file formats we can work with:

  • AutoCAD (DWG and DXF)
  • BMP
  • Bit Mapped Graphics
  • GIF
  • Graphics Interchange Format
  • IGES
  • JPG or JEPG
  • Joint Photographic Experts Group
  • PDF
  • TIFF
  • Tagged Image File Format
Do you have the capabilities for secondary finishes on torsion springs?

Yes, all of our components can have additional processing based on the end application requirements. Some examples of secondary finishes for torsion springs are as follows:

  • Black Oxide
  • Color Code
  • Gold Plating
  • Manganese Phosphate
  • Nickel Plating
  • Painting
  • Passivation
  • Phosphate w/ Oil
  • Powder Coated
  • Tin
  • Varnish
  • Zinc (Clear and Yellow)

Interested in a secondary process not listed above? Reach out to our team and we can discuss together.

What spring and stamping manufacturing equipment do you have?

A complete list of our equipment is as follows:

  • Itaya MX-10, MX-20, RX-20 CNC Spring Forming Machines
  • Primera Precision ZX-250 CNC Spring and Wire Formers
  • Vinston CCM-12-236 R, CMM-12-450 R Camless Multi-Axis Rotary Wire Spring Formers
  • Nilson Four Slide 4 Ton, 5 Ton, 7 Ton, and 20 Ton
  • Bihler MK3 – B20-01-0001 Servo-controlled Stamping and Forming Machine
  • Fenn-Torin FZ Series CNC Spring Coilers
  • Moyer CNC Spring Grinders
  • MicroStudio MC54-30 Automated Setting and Sorting Machine
  • Tool and Die fabrication. CNC Machining, Wire EDM
Do you provide secondary services such as PPAPs for torsion springs?

Yes! Our team has experience conducting PPAPs. We also offer Pre-Qualifying Engineering Cost Reduction Programs, Statistical Process Control (SPC), and Automotive FMEA.

What volumes are available?

Our volumes range from a single piece prototype to production volumes in the millions to everything in between.

Learn more about what critical to function means to us

It’s not just a stamping, it’s not just a wireform, it’s not just a spring. It HAS to work. You can’t risk your medical or defense product to not work every time. At Springfield Spring, we partner with your team to solve your most complex problems. Our products are tested and engineered to work every time as they’re supposed to function. We strive to make the best springs, stampings, wireforms and fourslide parts.
